Stainless W Type Fixing clips for FRP grating
Stainless W Type Fixing clips for FRP grating
Low stock: 10 left
Couldn't load pickup availability
Product Description:

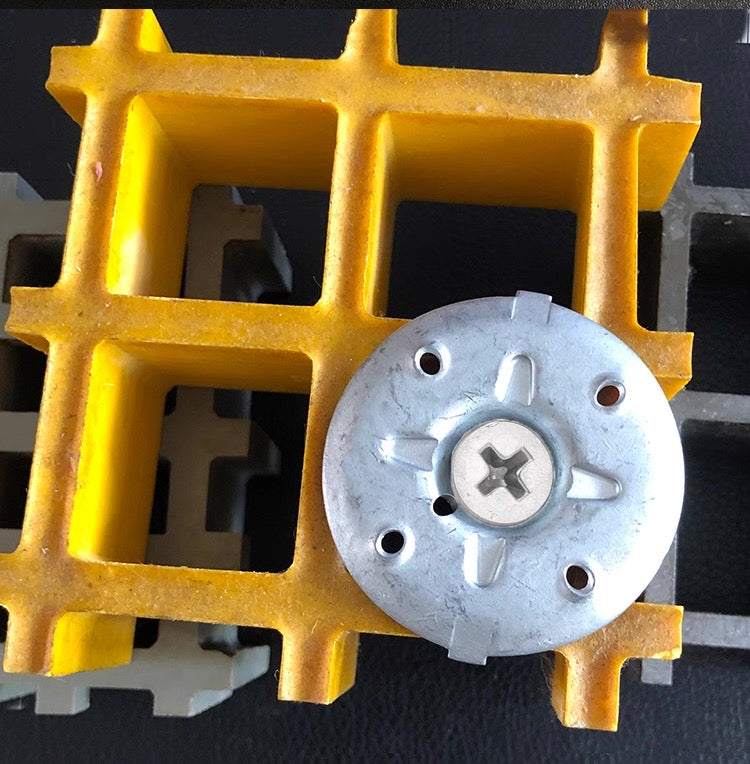

Secure FRP Grating with Universal W-Clips
W-Clips provide a reliable fastening solution for all types of FRP grating, including:
- Standard square & rectangular mesh
- Mini & Micro mesh profiles
- Fiberglass grit plates & checkered plates
- Covered fiberglass grating
Key Features:

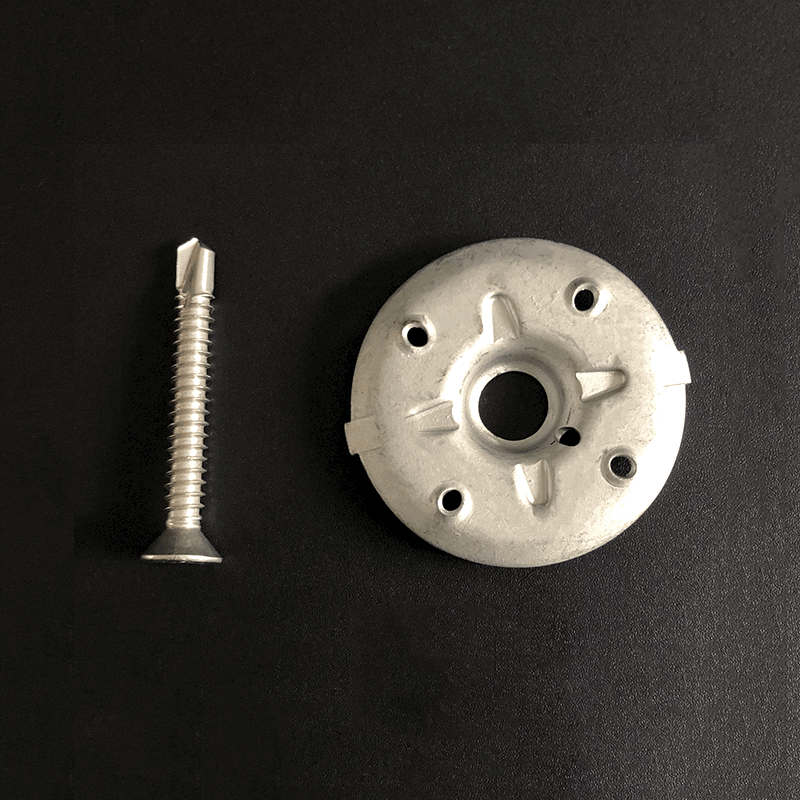

✔ Dome Washer Clip - Flush-mounted bolt design eliminates trip hazards while providing superior stability for high-traffic and heavy-load areas
✔ Complete Installation Kit - Includes countersunk cross-head (CSK Philips) bolts, nuts and washers
✔ Versatile Mounting - Can be used with bottom clamps when underside access is limited
Easy Installation:
Simply select bolts matching your grating thickness for secure, long-lasting fastening directly to any substrate.
Technical Specifications:
- Item/Type: Grating clip / W Clip
- Material Grade: Stainless steel AISI 316
- Finish: Mill or Polished
- Fits FRP Grating Type: Covered grating, Checkered grating, Square /Rectangle/Mini/Micro mesh moulded grating, Pultruded grating
- Fits Grating Mesh: 12.7x12.7mm, 19x19mm, 25x25mm
- Fits Grating Height: 25mm, 30mm, 38mm & 50 mm
- Drilling: Required
- Includes: M5 Countersunk cross-head bolt, nut & washer
- Package quantity: 100 sets of W Clip
- Recommended quantity: 4 W clips / sq.meter of grating
Frequently Asked Questions
How strong is FRP grating?
Fibergrate FRP has a high strength-to-weight ratio when compared to traditional materials like metal, concrete and wood. FRP gratings can even be strong enough to carry vehicular loads while weighing less than steel gratings.
Is FRP stronger than steel?
Glass FRP's strength-to-weight ratio is superior when compared to steel and aluminum but doesn't rank as high for stiffness-to-weight ratios. To meet stiffness requirements, CCG uses thicker glass fiber while retaining lighter part weight.
Which are the factors that influence properties of FRP?
Mechanical properties of FRP composites depend on the proportion of fibers and matrix materials, manufacturing methods, mechanical characteristics for constituent materials, and orientation of fibers through matrix.
Mainly raw material include
- Resin (corrosion resistance, hardness) Type: Ortho/ Iso / Iso food grade/ Vinylester/ Phenolic
- Glass fiber yarn (reinforced material, strength) Type: A-glass C- glass and E-glass
- Curing agent
- Accelerant
- Filler Type: Aluminum hydroxide/ Calcium carbonate/ No filler(pure resin)
