ESA GRATING

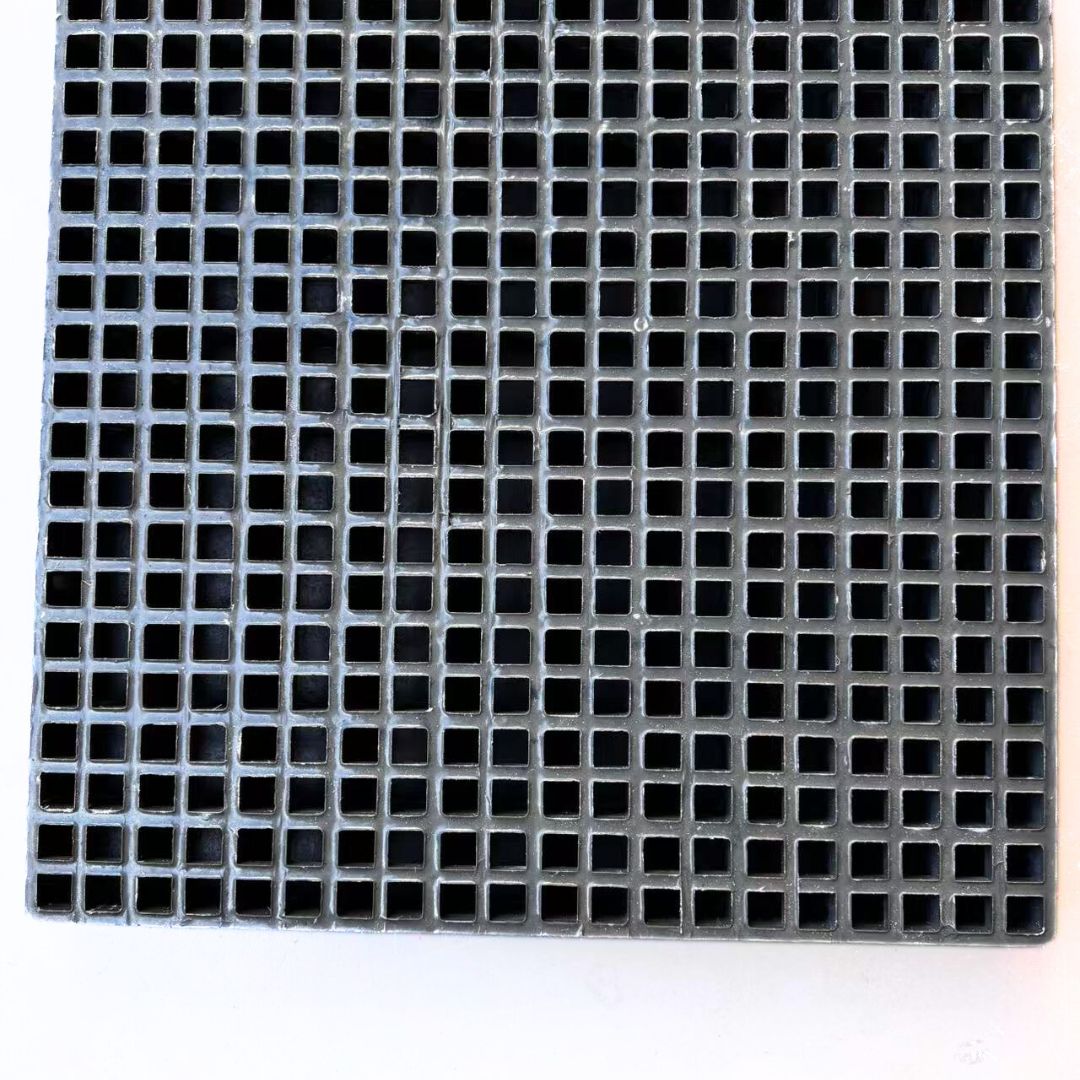

frp grating 25x25mm depth 50mm mini mesh
frp grating 25x25mm depth 50mm mini mesh
Couldn't load pickup availability
Product Description:
C-Clips: Connect the edge of two gratings and make them a integrity
L-Clips: Secure lightweight grating panels to support frames
M-Clips: Used to fix grating panels to a support
We offer frp grating accessory clips and bolts, All clips are made of SS316.
Besides, we offer special grating clips design if you have customized requirement.
Frequently Asked Questions
How strong is FRP grating?
Fibergrate FRP has a high strength-to-weight ratio when compared to traditional materials like metal, concrete and wood. FRP gratings can even be strong enough to carry vehicular loads while weighing less than steel gratings.
Is FRP stronger than steel?
Glass FRP's strength-to-weight ratio is superior when compared to steel and aluminum but doesn't rank as high for stiffness-to-weight ratios. To meet stiffness requirements, CCG uses thicker glass fiber while retaining lighter part weight.
Which are the factors that influence properties of FRP?
Mechanical properties of FRP composites depend on the proportion of fibers and matrix materials, manufacturing methods, mechanical characteristics for constituent materials, and orientation of fibers through matrix.
Mainly raw material include
- Resin (corrosion resistance, hardness) Type: Ortho/ Iso / Iso food grade/ Vinylester/ Phenolic
- Glass fiber yarn (reinforced material, strength) Type: A-glass C- glass and E-glass
- Curing agent
- Accelerant
- Filler Type: Aluminum hydroxide/ Calcium carbonate/ No filler(pure resin)
