Stainless M Type Fixing clips for FRP grating
Stainless M Type Fixing clips for FRP grating
20 in stock
Couldn't load pickup availability

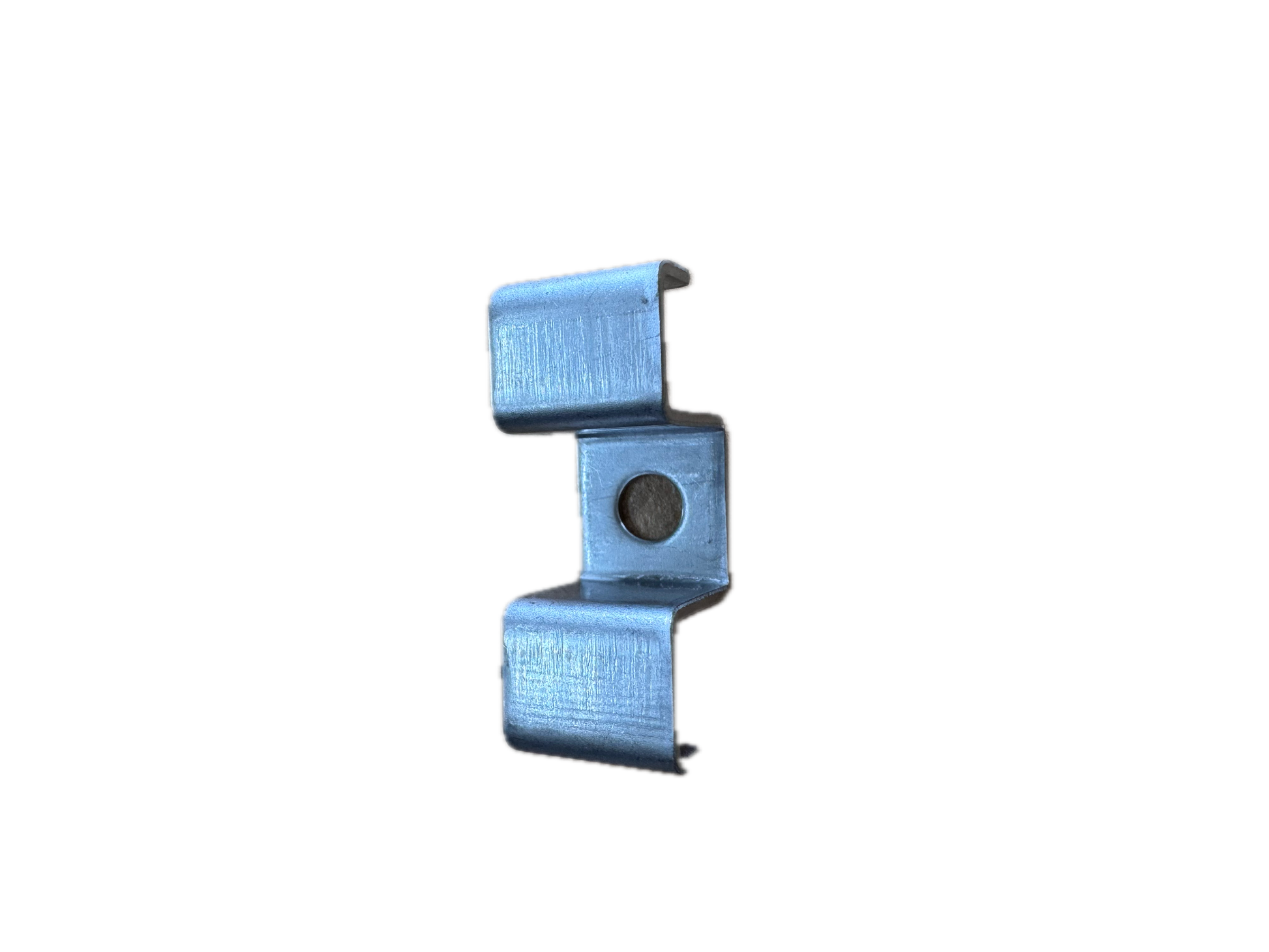

FRP Grating Fixing Clips (M-Type)
Product Overview

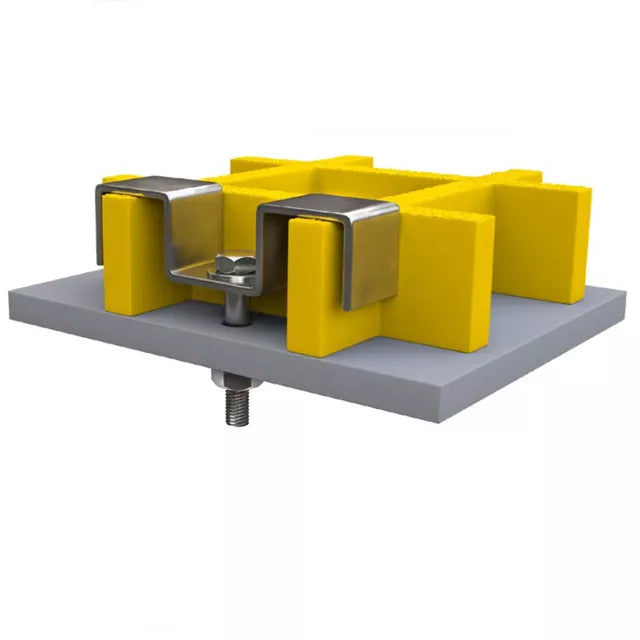

The M-Clip (also called Saddle Clip) delivers superior hold-down performance by securing FRP grating between two adjacent load bars. This universal fastener is compatible with all types of FRP molded grating (Square, Rectangle, Mini & Micro mesh) and Pultruded grating profiles.
Key Features
- Saddle design ensures positive engagement with load bars
- Standard kit includes hex bolt, nut & washer
- Optional self-drilling screw for pilot hole applications
- Ideal for open mesh FRP grating systems
Installation Instructions
- Position the M-Clip within the grating mesh opening, ensuring proper seating on load bars with the saddle base flush against the grating underside.
- For direct substrate mounting:
- Drill through clip hole into substrate
- Secure using appropriate screw & anchor
3. For frame mounting:
- Drill into support frame
- Insert bolt and tighten nut/washer beneath frame
Technical Specifications:
- Item/Type: Grating clip / M Clip
- Material Grade: Stainless steel AISI 316
- Finish: Mill or Polished
- Fits FRP Grating Type: Moulded gratings (Square, Rectangle, Mini & Micro-mesh) & Pultruded gratings
- Fits Grating Mesh: 19x19mm, 25x25mm, 38x38mm, 50x50mm

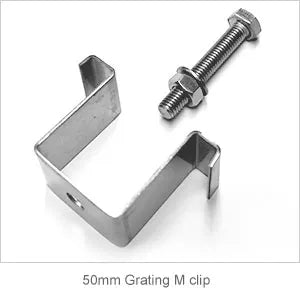

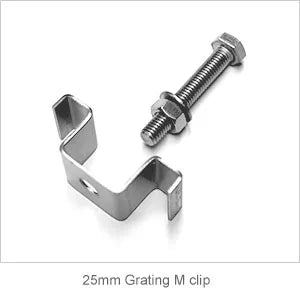

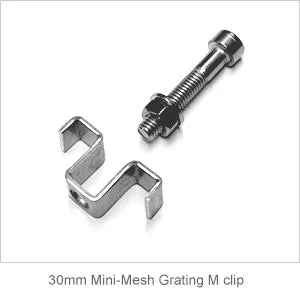

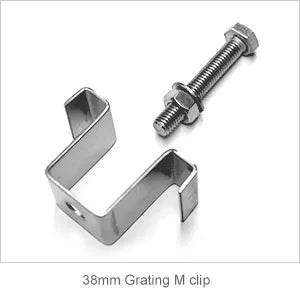

- Fits Grating Height: 25mm, 30mm, 38mm & 50 mm
- Drilling: Required
- Includes: Hex bolt, hex nut & plain washer
- Package quantity: 500 sets
- Recommended quantity: 4 M clips / sq.meter of grating
