• frp grating concave surface for ramps and walkways
1 3

ESA GRATING

frp grating 25x25mm mini mesh

frp grating 25x25mm mini mesh

$300.00 AUD
$300.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

21 in stock

Concave Surface: 1220x2142mm, 1220x2189mm

A forklift is required for delivery if the panel exceeds 30 kg. Otherwise, the shipment will be sent to your nearest depot for collection.
View full details

Product Description:

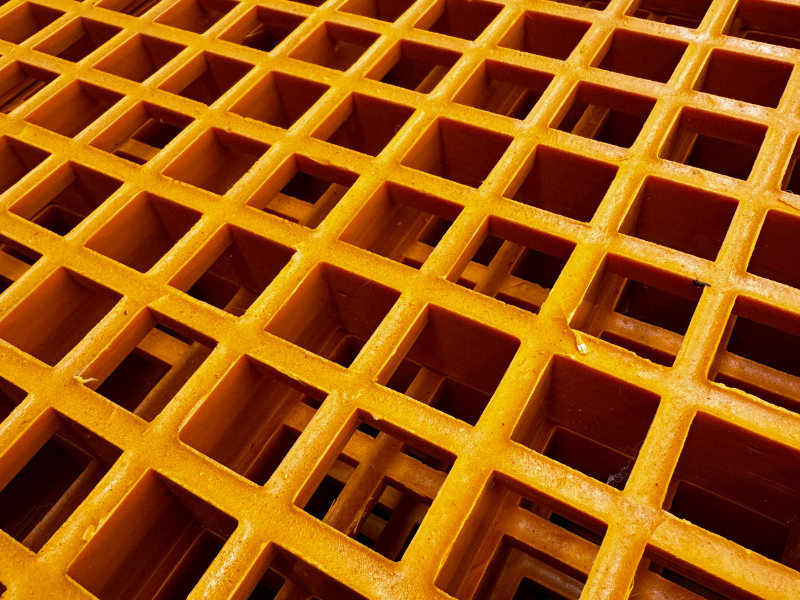

The FRP Grating Mini Mesh 25x25mm is a lightweight, corrosion-resistant fiberglass reinforced plastic grating featuring a tightly spaced grid pattern.

Key Product Features:

  • Mesh Size Options: Available in 25x25mm.
  • Material Composition: Constructed from isophthalic polyester resin reinforced with E-glass fibers, providing high strength-to-weight ratio.
  • Surface Type: Molded with a non-slip grit surface for added traction.
  • Panel Thickness: Standard thicknesses range from 25mm to 50mm, depending on load requirements.
  • Standard Panel Sizes: Typically supplied in 1220x3660mm or custom-cut dimensions.

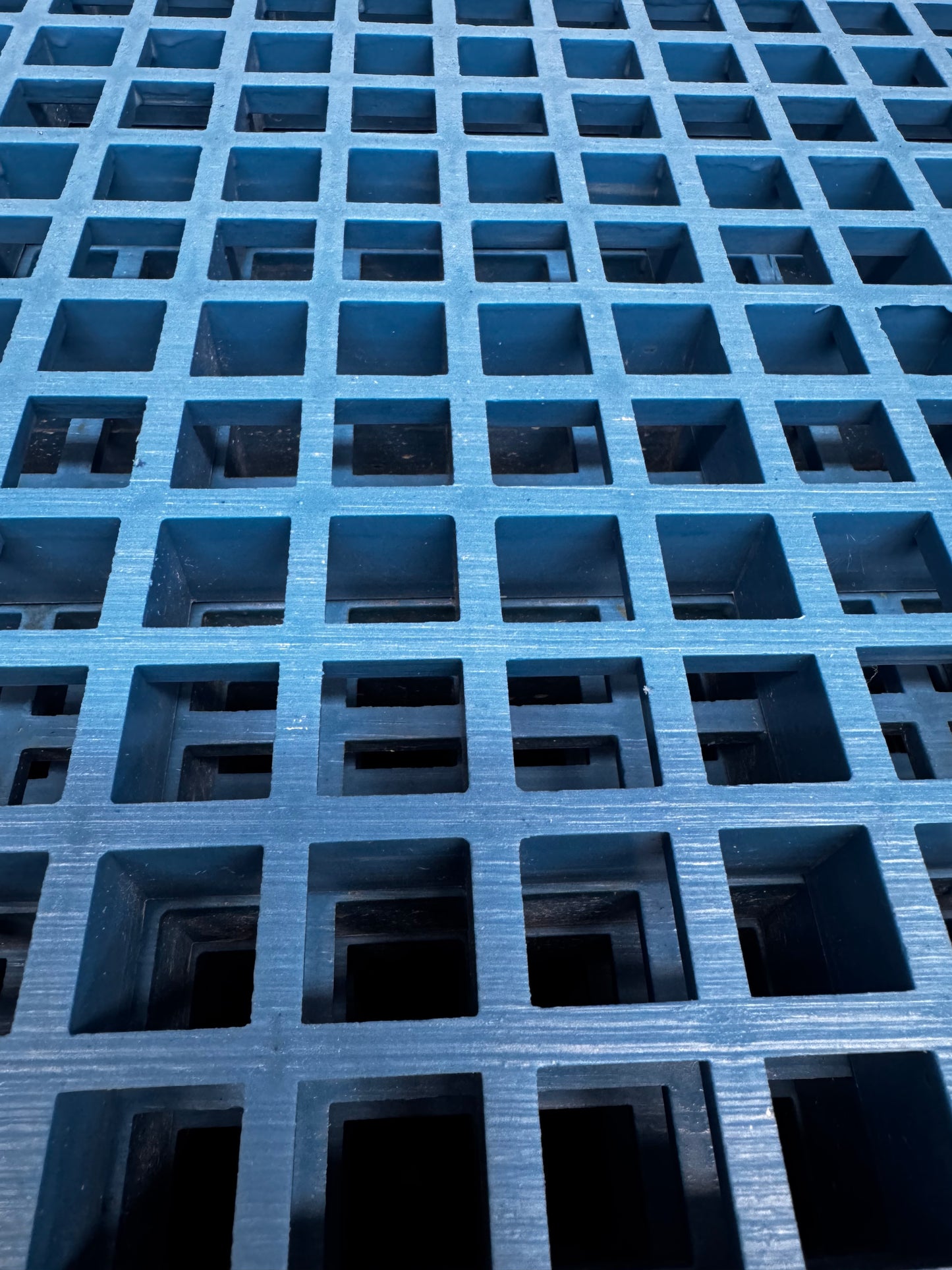

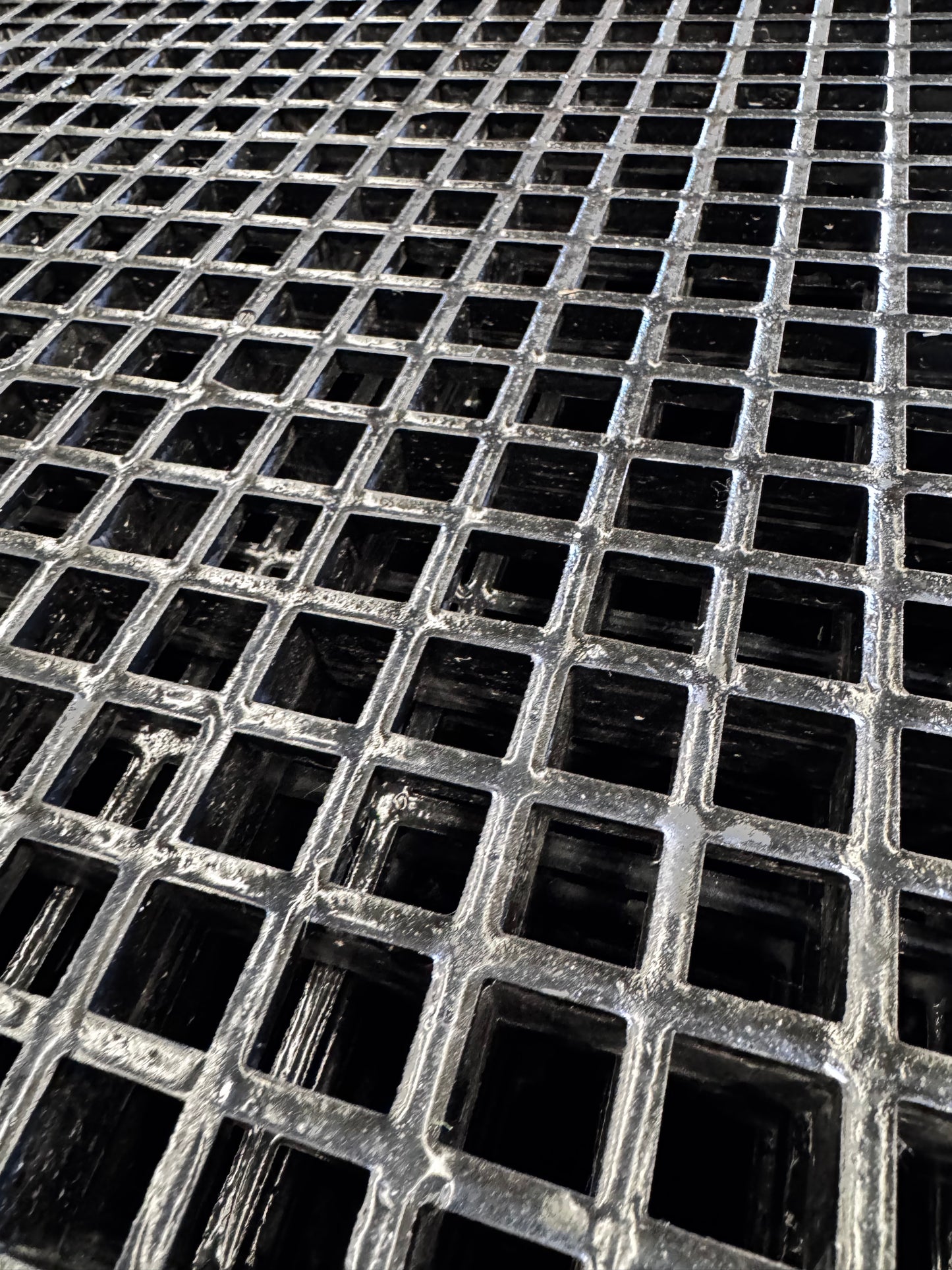

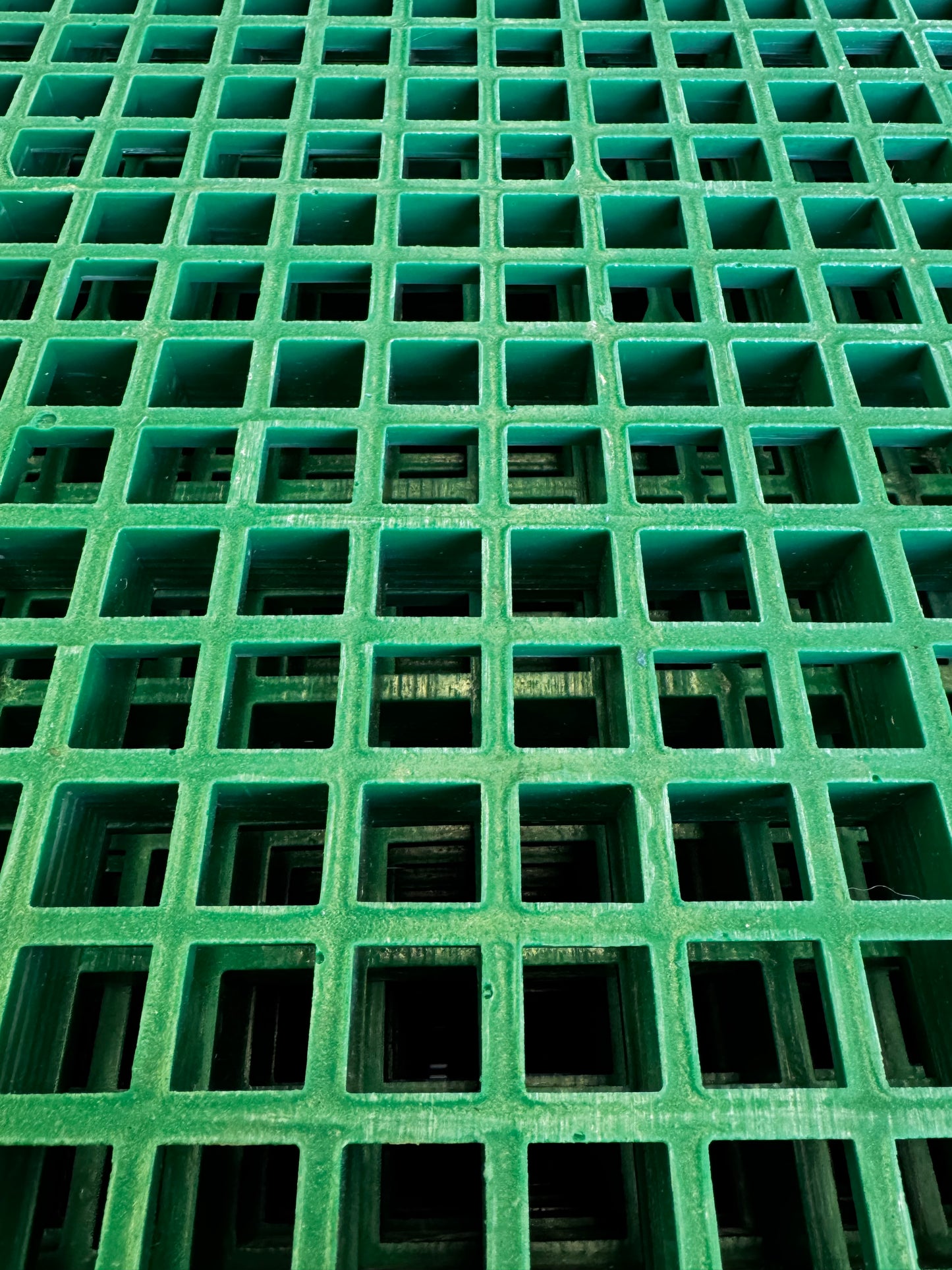

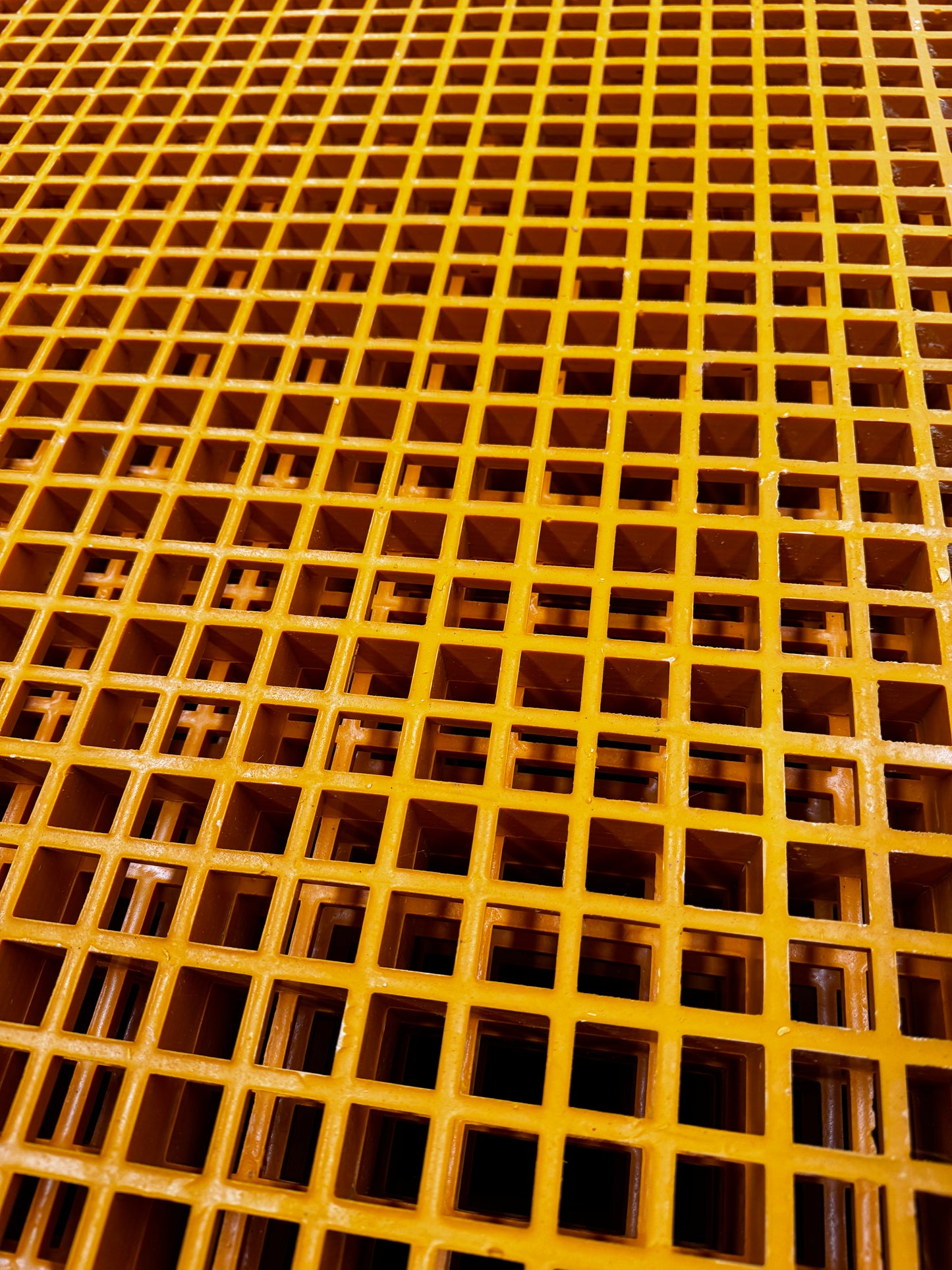

  • Color Options: Commonly available in grey, green, or yellow, with UV-resistant variants.
  • Load Capacity: Designed for light to medium-duty applications (exact load ratings vary by thickness and mesh size).
  • Mounting Options: Can be easily trimmed or drilled for installation with clips, bolts, or adhesives.
  • Chemical Resistance: Inert to most acids, alkalis, oils, and solvents.
  • Flame Resistance: Meets low-flame-spread standards (specific ratings depend on resin formulation).

Benefits of FRP Grating Mini Mesh 25x25mm:

✔ Corrosion-Resistant – Withstands harsh chemicals, moisture, and saltwater, unlike metal gratings.
✔ Lightweight & Easy to Install – Much lighter than steel, reducing labor and handling costs.
✔ Slip-Resistant Surface – Grit-textured design ensures safety in wet or oily conditions.
✔ Low Maintenance – No rust, rot, or painting required, saving long-term costs.
✔ UV-Stable – Resists fading and degradation from sunlight exposure.
✔ High Strength-to-Weight Ratio – Handles light to medium loads without bending or cracking.
✔ Non-Conductive & Non-Sparking – Ideal for electrical and hazardous environments.
✔ Customizable Sizes – Can be easily cut to fit specific applications.



Main Applications of FRP Grating Mini Mesh 25x25mm:


  1.  – Used in water treatment plants, trenches, and stormwater systems to allow flow while preventing debris buildup.

  2.  – Ideal for light-duty industrial catwalks, mezzanines, and service areas where slip resistance is critical.

  3.  – Acts as a support grid for filter media in wastewater plants, aquaculture, and chemical processing.

  4.  – Used in HVAC systems, duct covers, and equipment enclosures for corrosion-free airflow.

  5.  – Resists saltwater corrosion in docks, ship decks, and offshore platforms.

  6.  – Safe for substations, switch rooms, and explosive environments (non-conductive, non-sparking).

  7.  – Resists fertilizers, animal waste, and acidic washdowns in farms and food plants.

  8.  – Used in architectural designs, sunshades, and façade cladding for a lightweight, durable finish.

Cut To Size

Whether you're working on a small DIY project or a commercial project, we're proud to offer cut-to-size sheets here in the heart of Melbourne.

We use the circular saw or grinder with diamond blade.

Contact Us

Frequently Asked Questions

Does FRP crack easily?

FRPs are brittle, so cracks usually appear in the area where stress is concentrated, such as bolt holes and corner joints of the profile.

What are the two main components of FRP?

FRP composite materials are usually based on two major components; fibers and polymer matrix. The stiffness and strength of composite materials are controlled by fibers, while the role of matrix is to transfer load and provide protection against environmental elements.

Is FRP bad for the Environment?

Plastic typically has a bad reputation when it comes to the environment and suffers from the image of cheap limitation, compared to other materials. But when used correctly, FRP is a good option that is much more sustainable than aluminium, steel or timber.

What is the life expectancy of FRP grating?

FRP can last a very long time due to its corrosion resistance and UV stability. So, one can expect FRP products to last at least 20-25 years.
