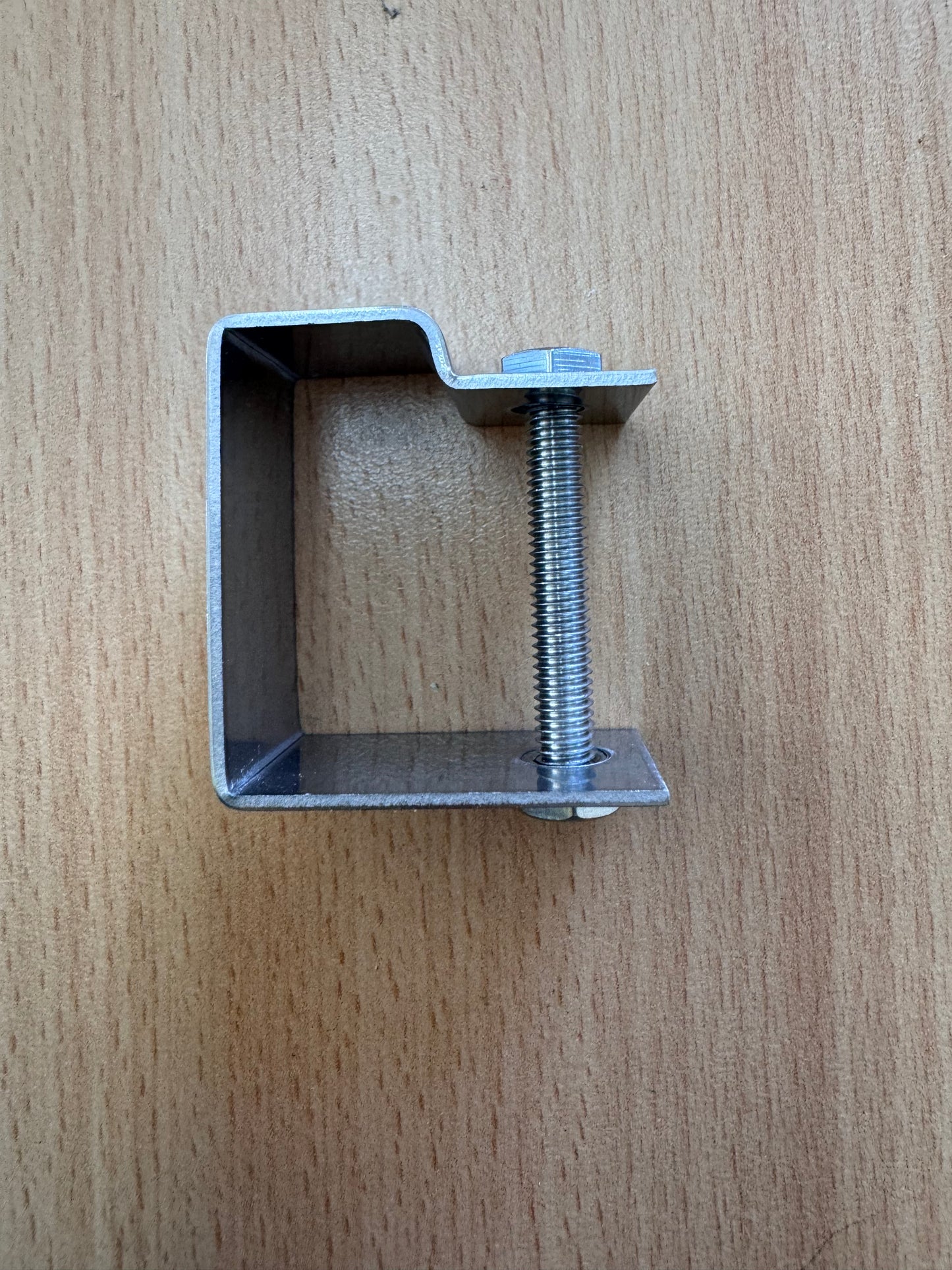

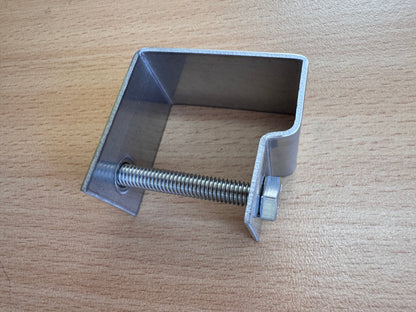

Frp Grating C Clip
Frp Grating C Clip
1950 in stock
Couldn't load pickup availability
Product Description:
C-Clip Panel Joining System for FRP Grating
Product Description:
The C-Clip is a specialized joining solution designed to securely connect adjacent molded fiberglass grating panels, effectively minimizing differential deflections between panels.
Key Features:
Specifically engineered for molded FRP grating applications
Provides secure inter-panel connection
Reduces differential movement between joined panels
Simple installation requiring only

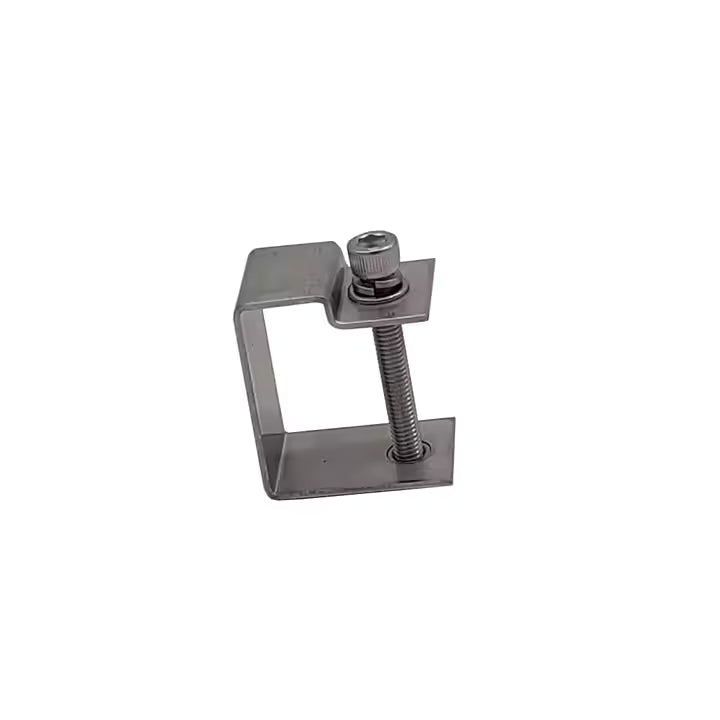

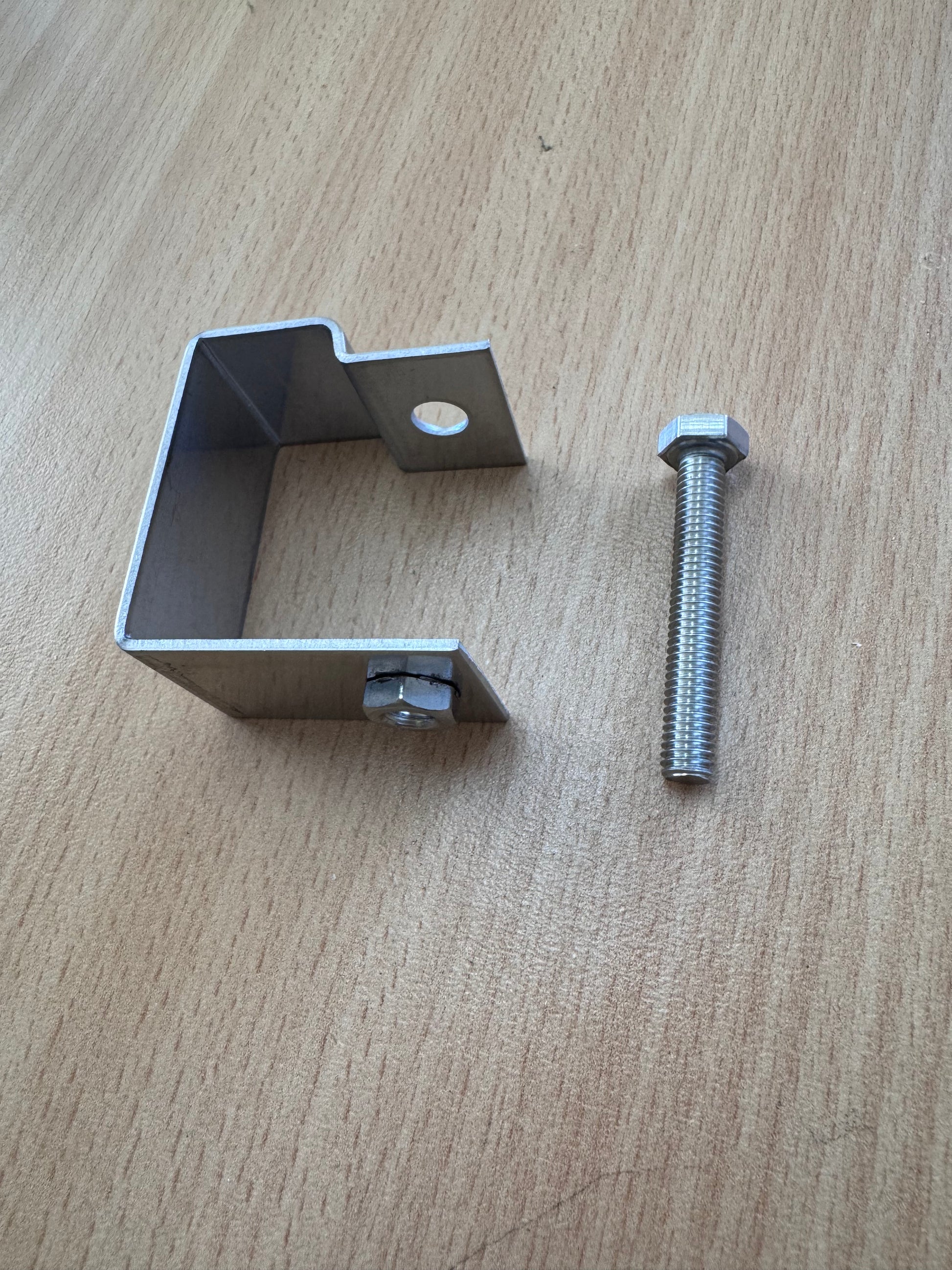

Assembly Components:
Joining clip for panel connection
Allen cap bolt ( Available in various lengths to accommodate different grating thicknesses)
Integrated base nut

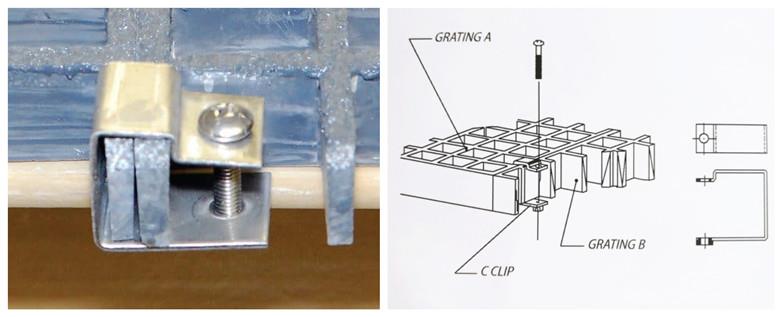

Installation Process:
1.Position the C- Clip at an angle over two adjacent load bars
2.Rotate the clip to horizontal alignment
3.Insert the allen bolt into the threaded base nut
4.Tighten securely using an Allen key
Frequently Asked Questions
How strong is FRP grating?
Fibergrate FRP has a high strength-to-weight ratio when compared to traditional materials like metal, concrete and wood. FRP gratings can even be strong enough to carry vehicular loads while weighing less than steel gratings.
Is FRP stronger than steel?
Glass FRP's strength-to-weight ratio is superior when compared to steel and aluminum but doesn't rank as high for stiffness-to-weight ratios. To meet stiffness requirements, CCG uses thicker glass fiber while retaining lighter part weight.
Which are the factors that influence properties of FRP?
Mechanical properties of FRP composites depend on the proportion of fibers and matrix materials, manufacturing methods, mechanical characteristics for constituent materials, and orientation of fibers through matrix.
Mainly raw material include
- Resin (corrosion resistance, hardness) Type: Ortho/ Iso / Iso food grade/ Vinylester/ Phenolic
- Glass fiber yarn (reinforced material, strength) Type: A-glass C- glass and E-glass
- Curing agent
- Accelerant
- Filler Type: Aluminum hydroxide/ Calcium carbonate/ No filler(pure resin)
