Frp Grating J Clamp

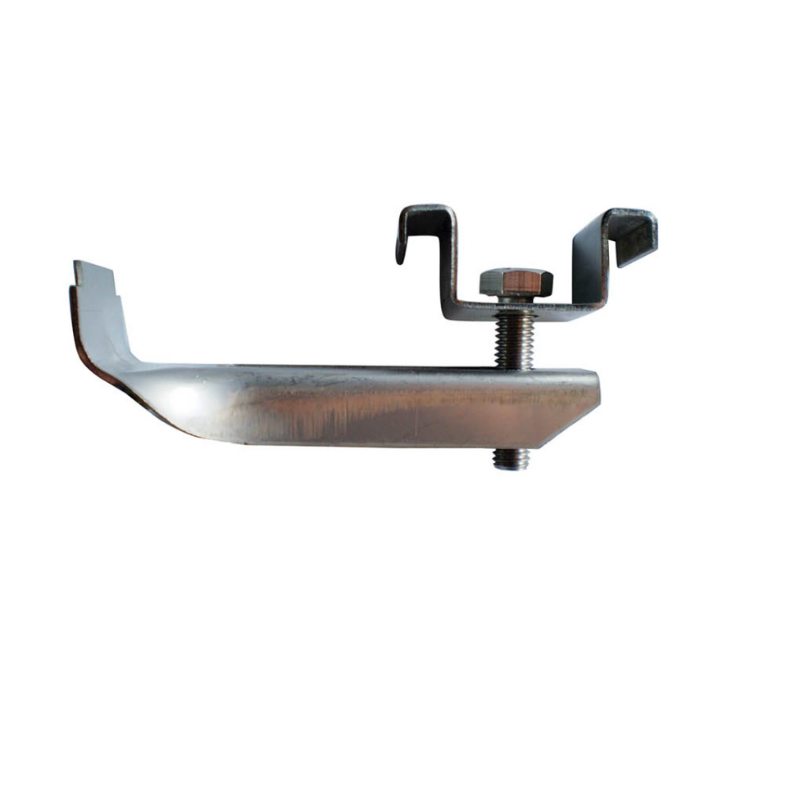

J-Clamp (Bird Mouth Clip) Fastening System for FRP Grating

Product Overview:
The J-Clamp is a specialized bottom fastening solution designed to work in combination with various top clips (M-Clip, L-Clip, W-Clip, and Square Recessed Clip) to create a complete FRP grating retention system.

Key Features:

• Universal bottom clamp design (commonly called Bird Mouth Clip)

• Compatible with multiple top clip configurations

• Creates secure top-and-bottom fastening solution

• Ideal for applications requiring extra stability

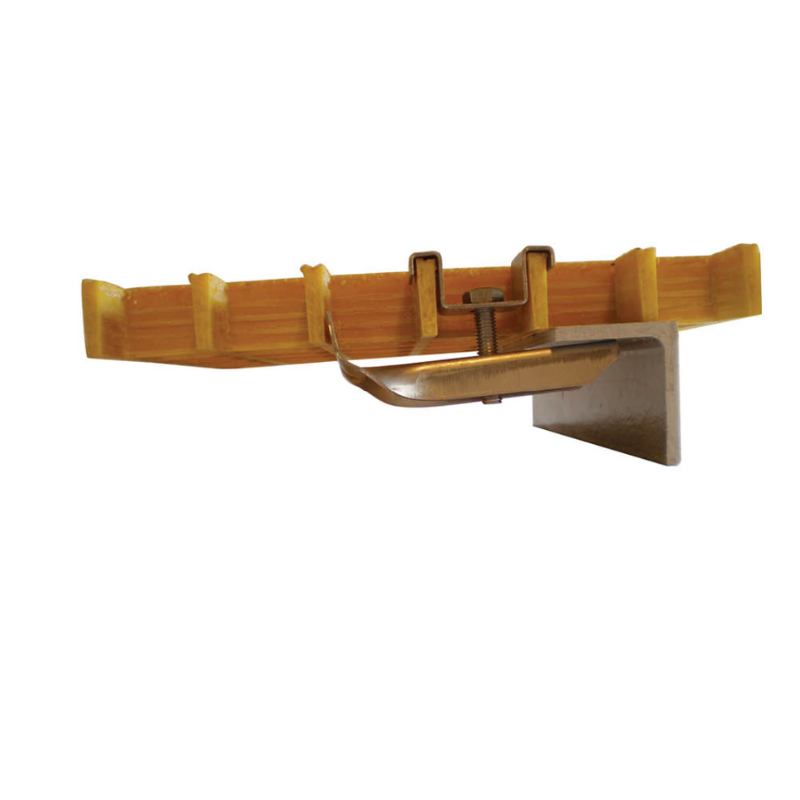

Complete Assembly Includes:

1. Top Clip (selected based on application)(Sold separately)

2. J-Clamp (Bird Mouth Clip) bottom component

3. Appropriate bolt, nut, and washer set
   (Sold separately)




Installation Procedure:

1. Top Clip Placement:


   Insert the selected top clip through the grating mesh


   Position securely on load bars


   Ensure base sits flush against grating underside



2. J-Clamp Positioning:


   Align beneath the grating structure


   Engage with the structural member flange


   Verify proper alignment with top clip



3. Final Fastening:


   Insert fastener through the complete assembly


   Tighten securely to create a locked connection




Technical Specifications:

• Item/Type:  Grating clip / J Clamp

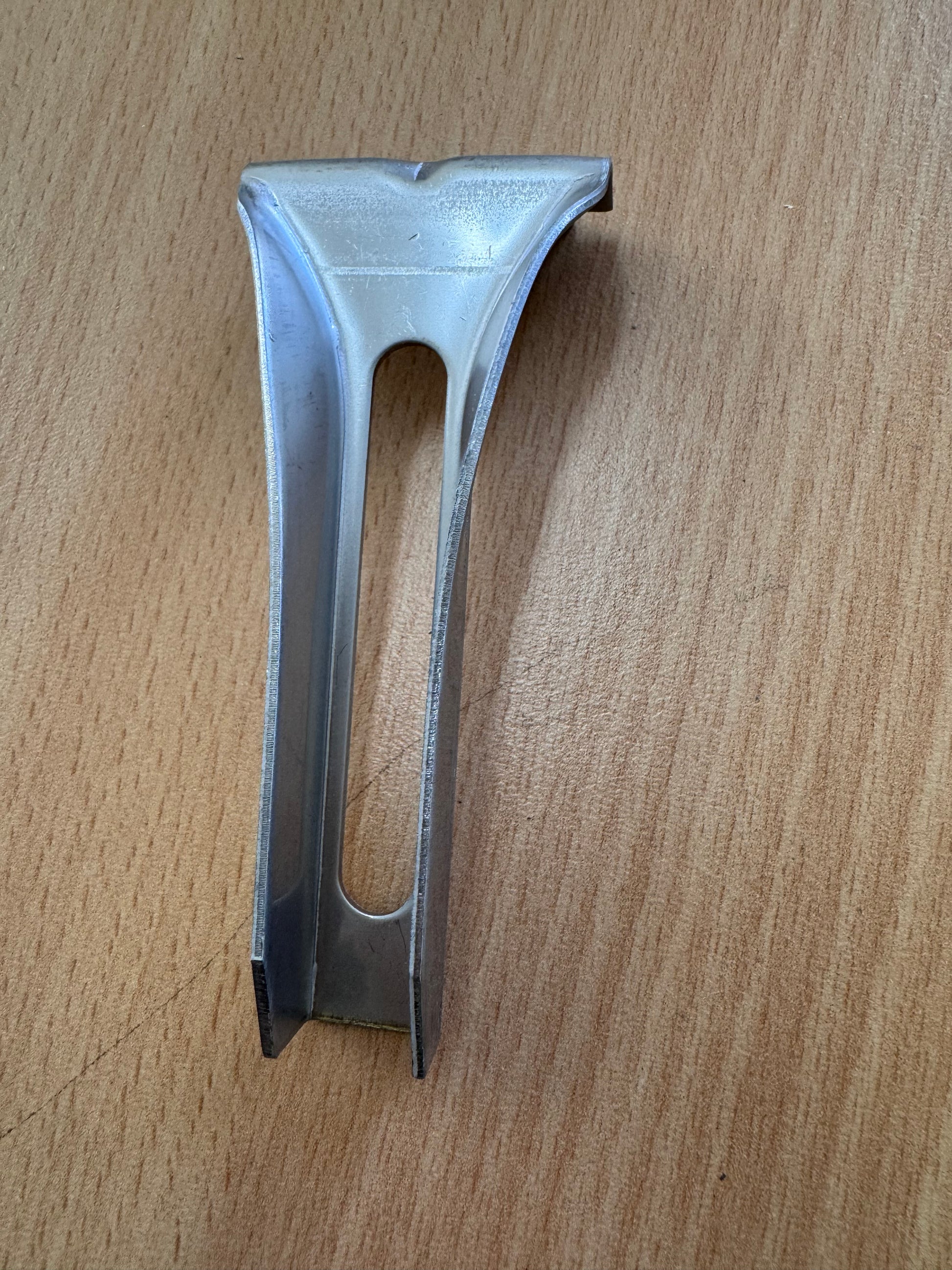

• Material Grade: Stainless steel AISI 316

• Finish: Mill or Polished

• Fits FRP Grating Type: Moulded & Pultruded

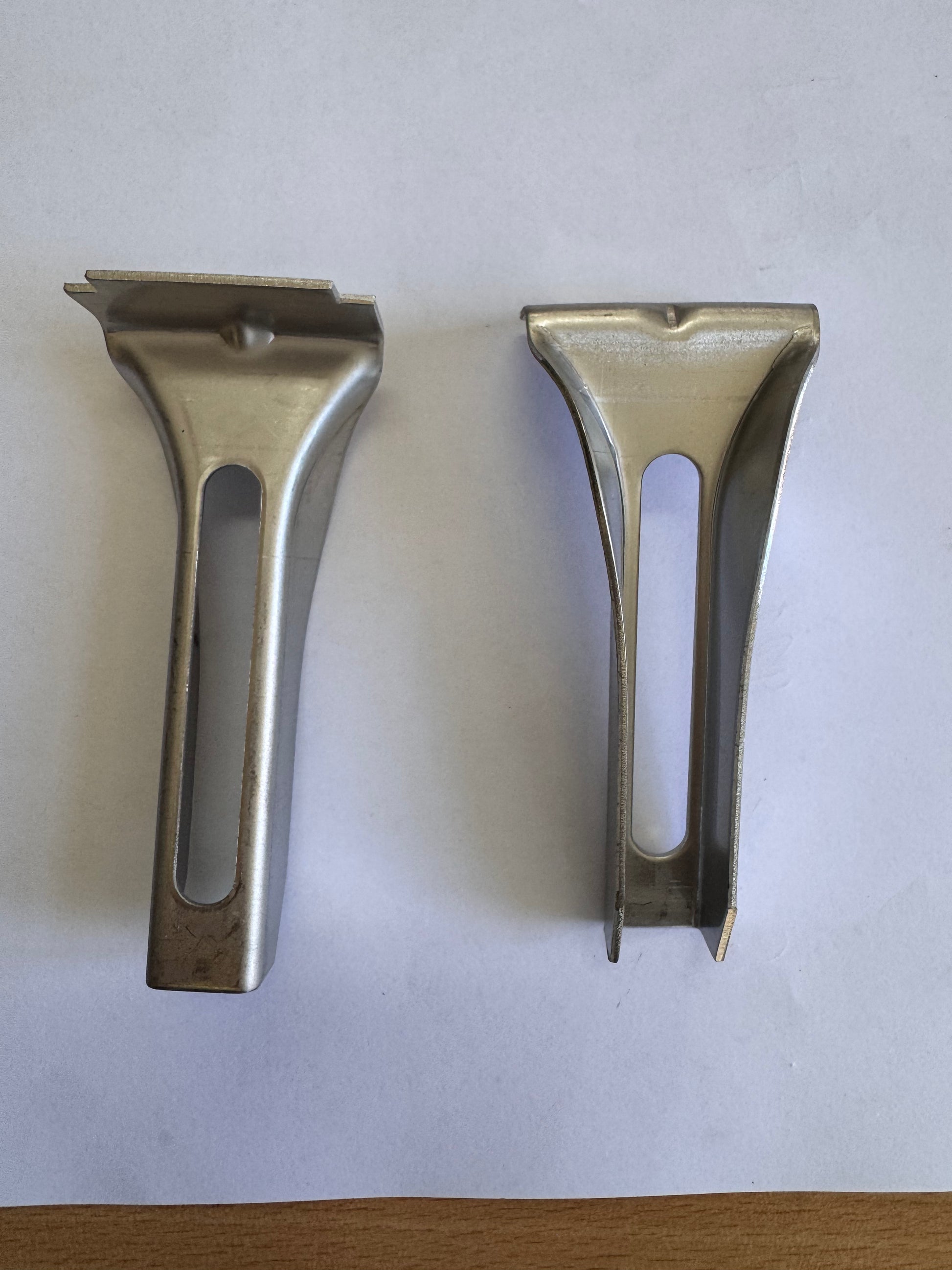

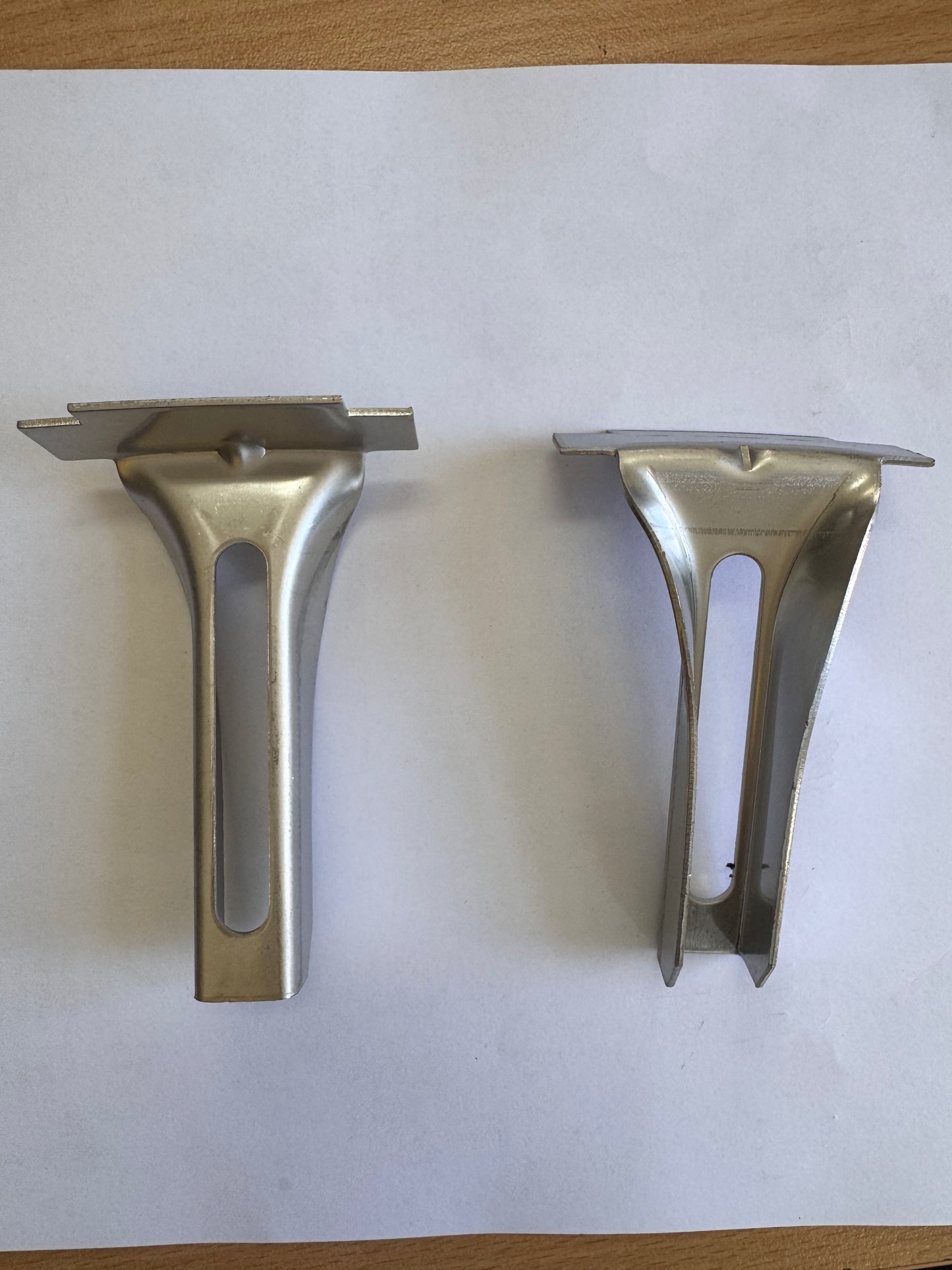

• Fits Grating Mesh: 38x38mm, 50x50mm

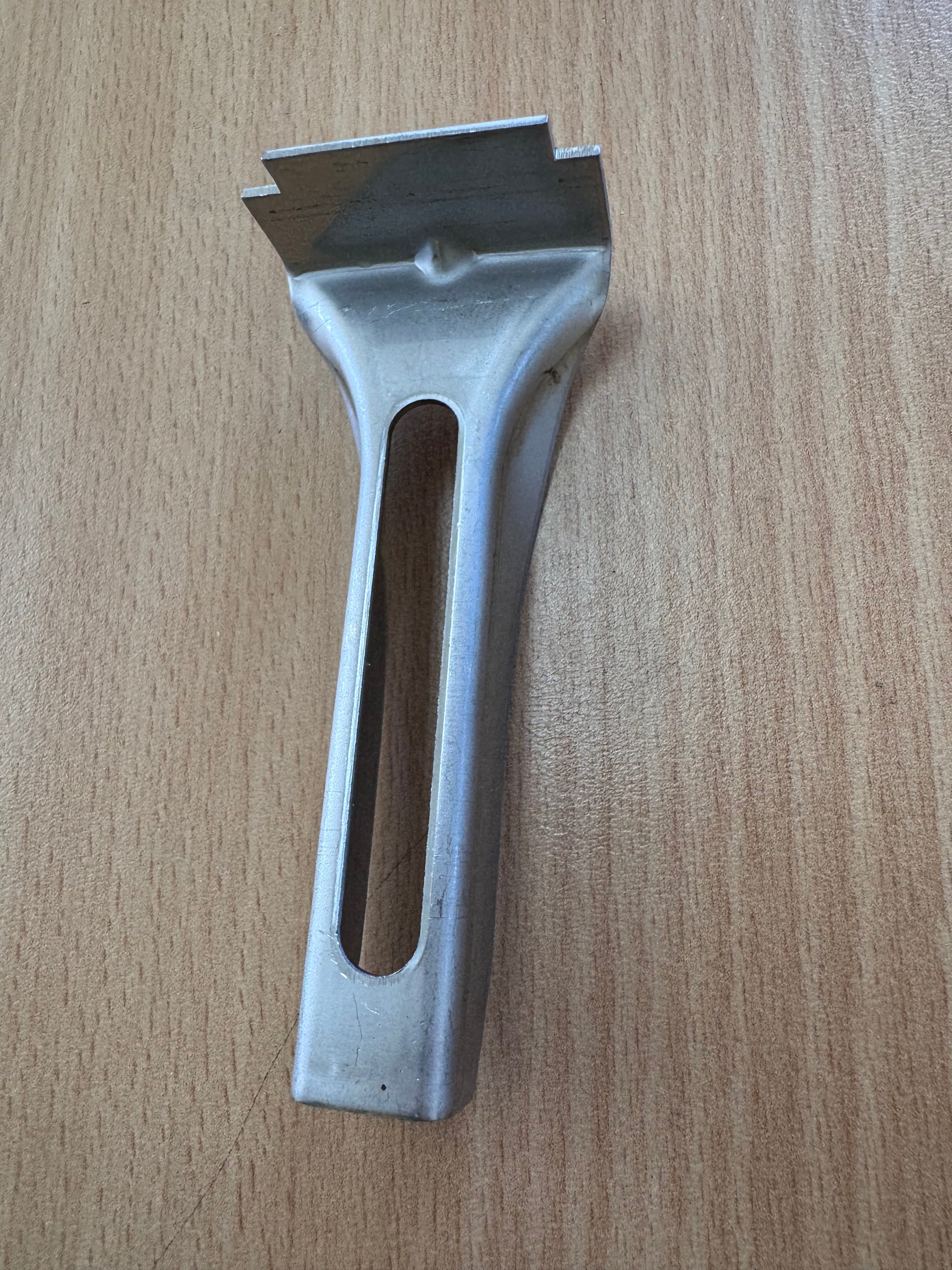

• Fits Grating Height: 25mm, 30mm, 38mm & 50 mm

• Drilling: Not required

• Includes: J clamp only, top m clip including bolt and nut sold separately.

• Package quantity: 100 sets of J Clamp

• Recommended quantity: 4 nos / sq.meter of grating
