ESA GRATING

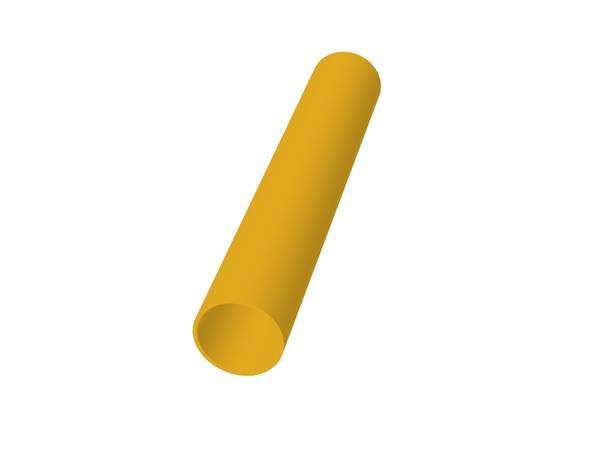

FRP round tube sold by per meter
FRP round tube sold by per meter
300 in stock
Couldn't load pickup availability
Product Description:
Features:
1.Corrosion Resistant
2.Light weight and High Strength
3.Anti-aging
4.Excellent electromagnetism property
5.Non-magnetism and non-conductive
What available:
Equal Angle: 50x50x6mm or 76x76x10mm (Dark Grey Ral7021, 6m each, can cut to size)
Round Tube: 38.1x6.6mm or 51.8x6.6mm (Yellow Ral1023, 6m each)
Square Tube: 38x38x7mm or 50x50x3.5mm(Yellow Ral1023, 6m each)
Frequently Asked Questions
How strong is FRP grating?
Fibergrate FRP has a high strength-to-weight ratio when compared to traditional materials like metal, concrete and wood. FRP gratings can even be strong enough to carry vehicular loads while weighing less than steel gratings.
Is FRP stronger than steel?
Glass FRP's strength-to-weight ratio is superior when compared to steel and aluminum but doesn't rank as high for stiffness-to-weight ratios. To meet stiffness requirements, CCG uses thicker glass fiber while retaining lighter part weight.
Which are the factors that influence properties of FRP?
Mechanical properties of FRP composites depend on the proportion of fibers and matrix materials, manufacturing methods, mechanical characteristics for constituent materials, and orientation of fibers through matrix.
Mainly raw material include
- Resin (corrosion resistance, hardness) Type: Ortho/ Iso / Iso food grade/ Vinylester/ Phenolic
- Glass fiber yarn (reinforced material, strength) Type: A-glass C- glass and E-glass
- Curing agent
- Accelerant
- Filler Type: Aluminum hydroxide/ Calcium carbonate/ No filler(pure resin)
